Beskrivning av SHOCK REBUILD KIT
Shock Rebuild Kit
Air Shock Rebuild kit is made with modern materials and manufacturing techniques to ensure an as good or better fitment to the original Fox Air Shocks
Kit rebuilds the VintCo or original Fox air Shocks
Kit rebuilds all lengths of Air Shocks and comes with the critical pieces to rebuild your Air Shock
One kit will rebuild one shock (order two if rebuilding two shocks)
Every rebuild part is available for your Fox Air Shocks at VintCo

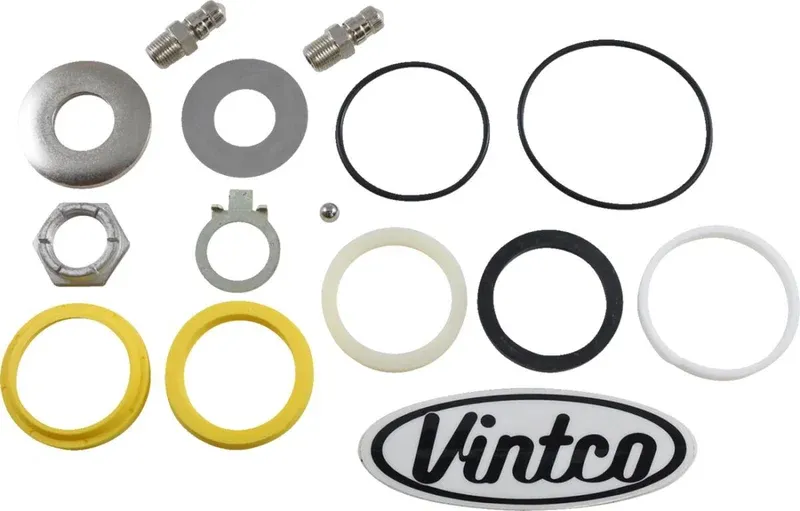

Complete Air Shock Rebuild Kit
For All Fox & Vintco Air Shocks
1 Shaft Seal 33.5×43.5×7.9 mm
1 Shaft Wiper 34.5×45.5×7.25 mm
1 Bearing O-ring 42x48x2.6 mm
1 Cap O-ring 55x60x2.6 mm
1 Top-out Bumper 34.5×44.5×5.3 mm
1 Shaft Bumper 34.4×47.5×6.35 mm
1 Piston Ring 6.35 mm
1 Piston Lock Ring 1.1 mm
1 Valve Ball
1 Top-out Plate (washer) 4.6 mm
1 Large Valve (washer) 0.25 mm
2 Tank Valves
2 Tank Valve Caps
1 Kit will rebuild 1 shock
